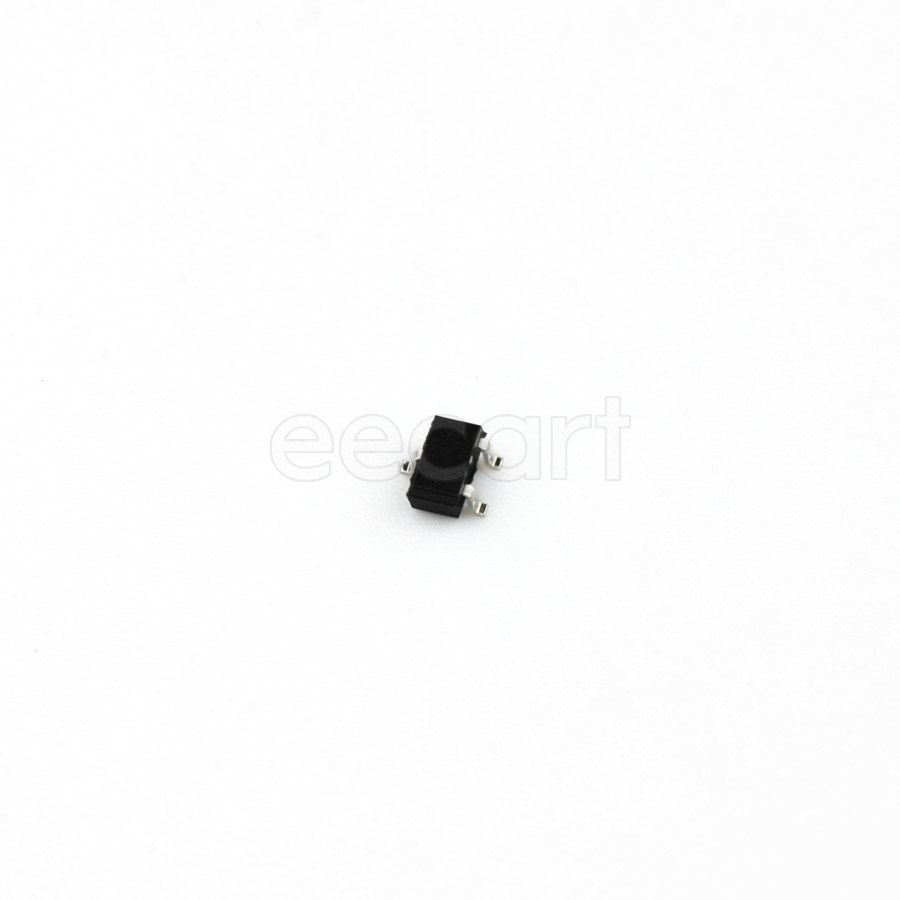

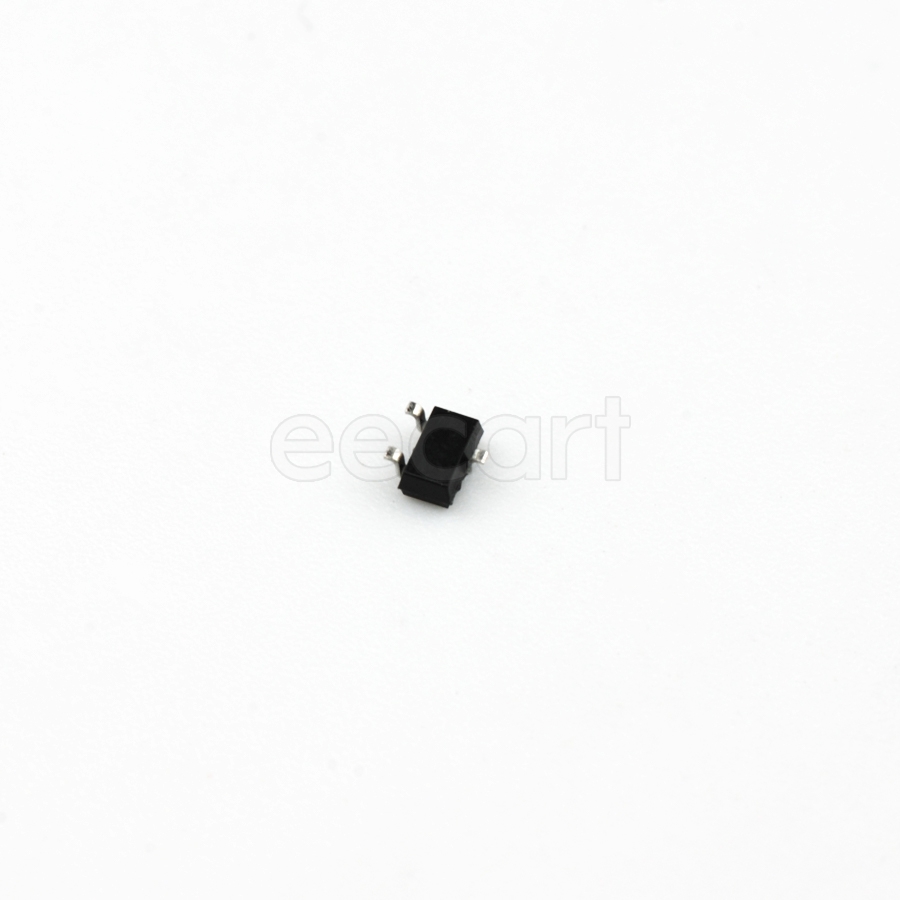

SBAV99WT1G
Manufacturer:
On Semiconductor
Mfr.Part #:
SBAV99WT1G
Datasheet:
Description:
Rectifier Diodes SC-70, SOT-323 SMD/SMT Standard Dual Forward Current:215 mA Forward Voltage:1.25 V Reverse Voltage:100 V
| Parameter | Value |
|---|---|
| Capacitance | 1.5 pF |
| Length | 2.2 mm |
| Width | 1.35 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Height | 900 µm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Standard |
| Forward Current | 215 mA |
| Forward Voltage | 1.25 V |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 200 mW |
| Reverse Recovery Time | 6 ns |
| Average Rectified Current | 715 mA |
| Max Reverse Leakage Current | 2.5 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 70 V |
| Element Configuration | Dual |
| Max Surge Current | 500 mA |
| Forward Surge Current (Ifsm) | 500 mA |
| Reverse Voltage | 100 V |
| Max Junction Temperature (Tj) | 150 °C |
| Peak Non-Repetitive Surge Current | 2 A |
| Reverse Current | 1 µA |
| Recovery Time | 6 ns |
| Schedule B | 8541100070 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
Stock: 188
Distributors
pcbx
pcbxUnit Price$0.08506
Ext.Price$0.08506
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08506 | $0.08506 |
| 10 | $0.07625 | $0.76250 |
| 50 | $0.06835 | $3.41750 |
| 100 | $0.06088 | $6.08800 |
| 500 | $0.05422 | $27.11000 |
| 1000 | $0.04976 | $49.76000 |
| 3000 | $0.04567 | $137.01000 |
| 5000 | $0.04312 | $215.60000 |
